Product image is for illustration purposes only and may not reflect actual size. Refer to product specifications for exact dimensions.

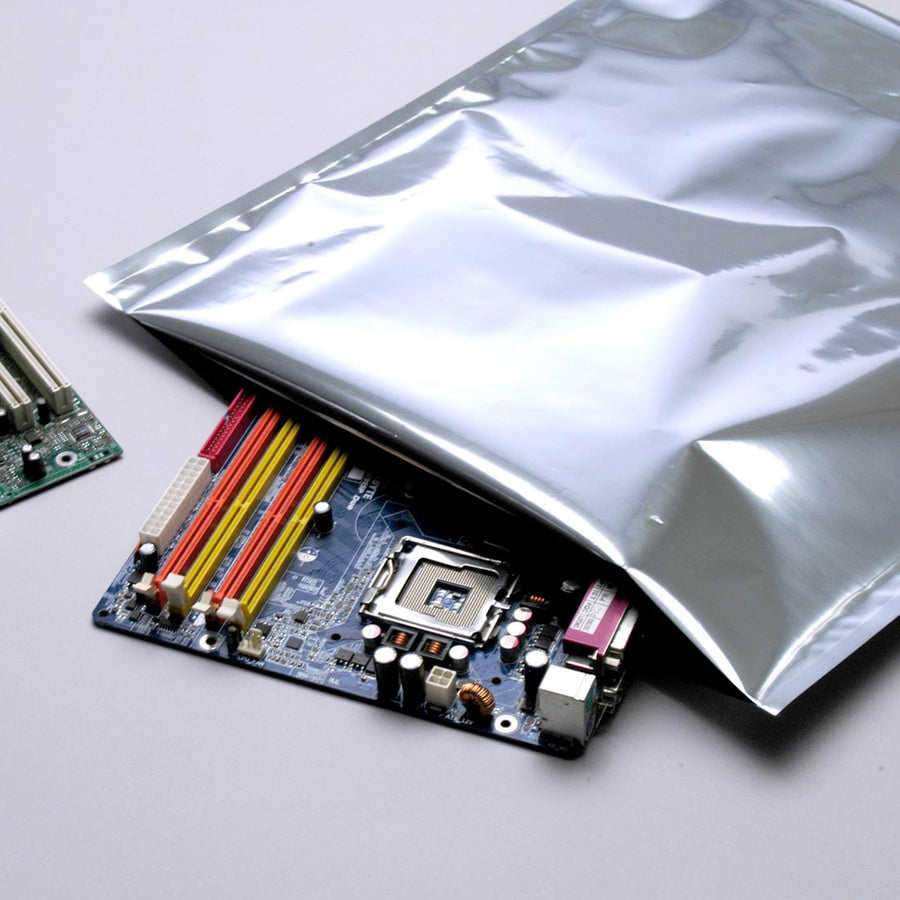

10" x 20" 3.6 mil Barrier Bag Case of 200
Item # BB361020
These 10" x 20" ESD moisture barrier bags in 3.6 mil film are waterproof, vapor proof and shielded against static and EMI. They're sized for reels, trays and tubes of components, circuit boards and modules that need to stay dry until assembly.
The metal barrier layer holds moisture vapor transmission to 0.015 g per 100 sq in per 24 hours and oxygen to 0.005 cc, and shields against EMI (over 40 dB, 1 to 10 GHz). The film resists puncture (over 20 lb), is free of amines and amides, and doesn't corrode copper, aluminum, silver or solder. They comply with RoHS 3, REACH and California Prop 65. They're not QPL certified, so they aren't for jobs that require MIL-PRF-81705 qualified bags.
Anti-Static Moisture Barrier 3.6 Bags are made from high performance barrier materials, specially designed for "dry packaging" of moisture-sensitive electronic components. The bags are waterproof, vapor-proof and greaseproof. These bags offer superior ESD and EMI shielding and are recommended for EIA Std. 583. Class 1 requirements. The bags meet the electrical and physical requirements of EIA Std. 541.
Sizing: 10" wide x 20" long, inside dimensions, open on the 10" end. Leave enough length to heat seal across the top (250-375 °F) with the part, desiccant and humidity card inside.
Need to see the part through the bag? Use static shielding bags instead: they shield against static but aren't a moisture barrier.
Browse every size in our moisture barrier bags collection.
Key features
- MVTR 0.015 g/100 sq in/24 hr: waterproof, vapor proof, greaseproof
- ESD protection and EMI shielding over 40 dB
- Heat sealable; EIA 583 Class 1, EIA 541; RoHS 3, REACH
- 10" x 20" inside, 3.6 mil, case of 200
